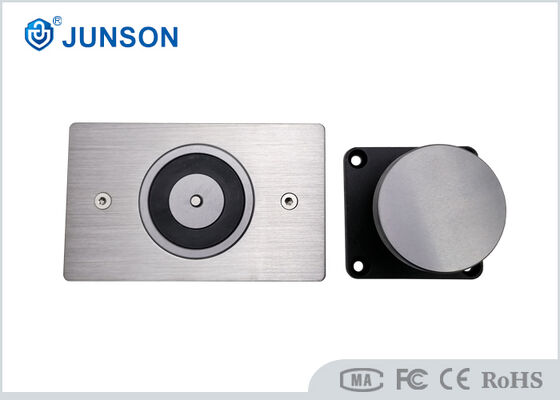

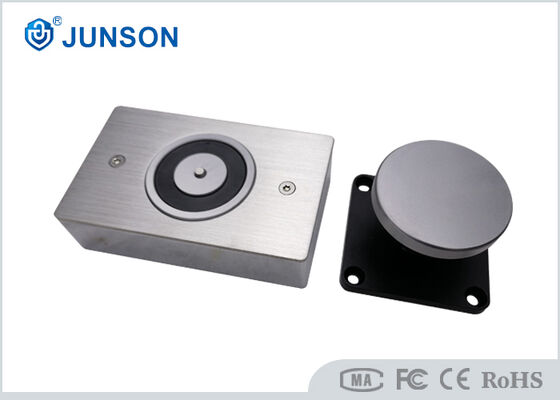

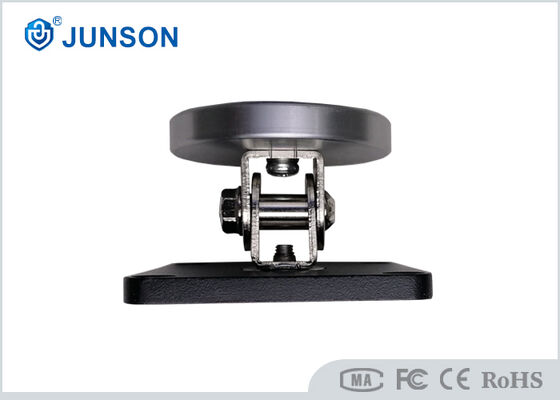

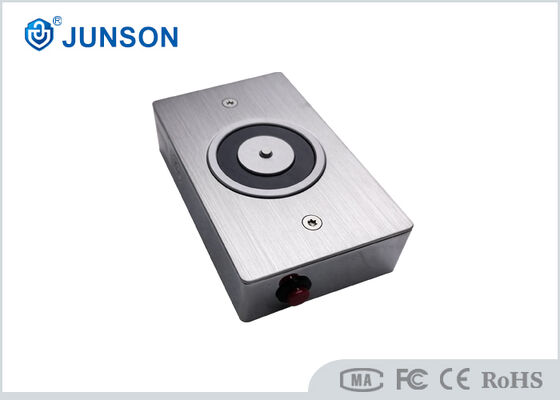

120 lbs Wall-Mounted Door Holder – Heavy-Duty Stainless Steel Design
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | JUNSON |
| Sertifika: | CE/FCC |
| Model numarası: | JS-H901 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 10 adet |
|---|---|
| Fiyat: | Pazarlık edilebilir |
| Ambalaj bilgileri: | Kartonda paketlenmiş |
| Teslim süresi: | Ödemenizi aldıktan sonra 2-7 iş günü |
| Ödeme koşulları: | T/T, paypal veya western Union önceden |
| Yetenek temini: | Ayda 5000 adet |
|
Detay Bilgi |
|||
| Marka: | JUNSON | modeli: | JS-H901 |
|---|---|---|---|
| Sıcaklık: | -10°~55°C | Yüzey sıcaklığı: | <20°C |
| Vakayı bitir: | Tel çekme bitirme | Uygunluk:: | Her türlü tek ve çift duman geçirmez kapı |
| Kasanın malzemeleri: | 304 Paslanmaz Çelik, tel çekme kaplaması | Mıknatıs plaka boyutu: | Çap 55mm |
Ürün Açıklaması
Specifications
-
Dimensions: 114 × 70 × 29 mm (L × W × H)
-
Magnet Plate Size: Ø55 mm
-
Holding Force: 70 kg / 120 lbs
-
Operating Voltage: 12V DC or 24V DC (24V by special order)
-
Standby Current: 140 mA @ 12V, 70 mA @ 24V
-
Housing Material: 304 Stainless Steel with wire-drawn finish
-
Application: Suitable for all types of single and double smoke-proof doors
-
Armature Finish: Zinc plating
-
Color: Silver
-
Case Finish: Wire-drawn finish
-
Release Button: Manual red door release button
-
Surface Temperature: < 20°C
-
Operating Temperature: -10°C to 55°C
-
Operating Humidity: 0–90% RH
-
Net Weight: 1.0 kg
-
Standard Packing: 20 pcs per carton
-
Carton Size: 60 × 35 × 16.5 cm
-
Gross Weight: 23 kg
Features
-
High Holding Force: Colinear load tested to 70 kg (120 lbs) for reliable door holding performance.
-
Dual Voltage Support: Default 24V DC, adjustable to 12V DC as required.
-
Reverse Current Protection: Built-in MOV protects against reverse current and voltage spikes.
-
Low Power Consumption: Energy-efficient design that is environmentally friendly.
-
Manual Door Release: Integrated release button allows immediate door release when pressed.
-
Anti-Residual Magnetism: Ensures stable operation and prevents sticking.
-
Professional Construction: Dual insulated housing for enhanced safety and durability.
-
Fire Safety Function: Automatically releases and closes smoke-proof doors in case of fire.
-
Flexible Installation: Suitable for floor mounting or glass door applications.
-
Fail-Safe Operation: Door is released automatically when power is cut.
